PE PIPE FLOATS (PS OR PU FILLED)

Our Pipe Floats are commonly used for dredging, mining and drainage of waste materials, as well as for cables. Both our systems (PF250 Modular and Clamshell) are made from HDPE, ensuring a lifespan three times that of concrete or steel pipe floats. It is also highly recyclable. Clamshells are filled with either PU (polyurethane) or PS (polystyrene) so should any cracking or damage occur, they will remain buoyant until they are replaced. The modular floats come in sets of three or five, joined with adjustable brackets to ensure a tight fit around your pipe. They can also be double stacked, for projects with heavier loads.

The clamshells are manufactured in four different sizes with 220ltr, 600ltr, 800ltr and 1000ltr capacity:

CMS-060
Volume : 220L
Weight : 24kg
Dia : 31.5cmCMS-034
Volume : 600L
Weight : 63kg
Dia : 45cmCMS-035
Volume : 800L
Weight : 67kg
Dia : 60cmCMS-038
Volume : 1000L
Weight : 86kg
Dia : 55cm

Also, for a smaller pipe diameter:

CMS-061
Volume : 800L
Weight : 55kg
Dia : 56.6cm

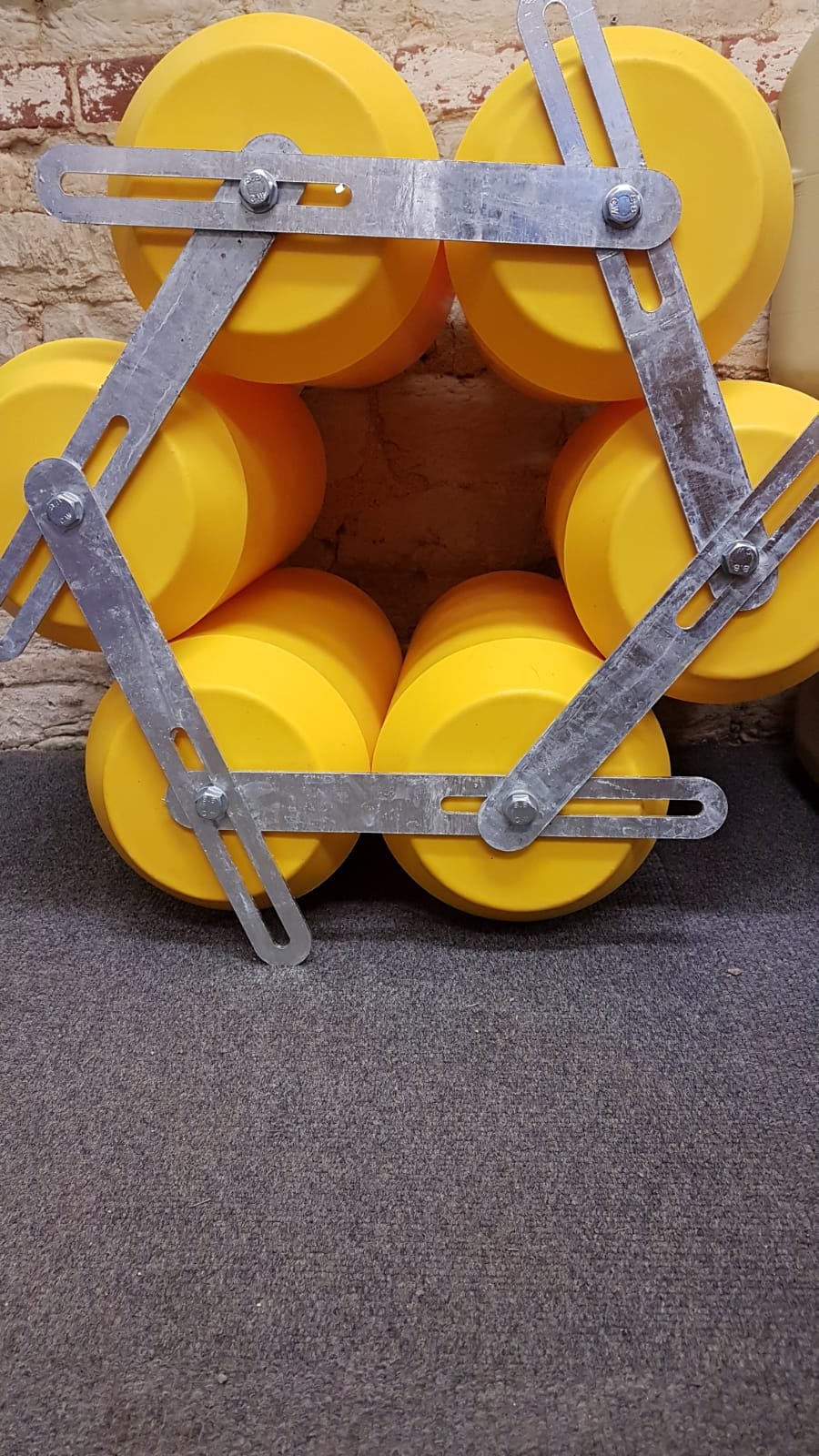

The modular PF250 floats are 250mm width and 500mm length.

Load to sinkSWL (50% capacity)Pipe Dia.Set of 372kg36kgUp  to 17.5cmSet of 5120kg60kgUp to 31.5cm

HIGH VISIBILITY SAFETY BARRIER

Used in a variety of areas that need security, high visibility and to show the limit of a specific area, our Safety Barriers are the perfect answer. The individual modules are produced by combining two halves that join together with galvanised axles. Each module is connected to the next with galvanised chain and clamps and the whole barrier is held in place with anchors. Due to the connectivity of the modules, the barriers can be produced specifically to your requirements. Each module can also be separately replaced should any damage occur, without interrupting the barrier’s service. The polyethylene that they are made from, is durable, robust and UV resistant. With their foam filling, they are also practically unsinkable, even when damaged, and have a high buoyancy. Standard or custom warning labels can be applied to the modules and they come in high visibility yellow, orange and white.

Dimensions of modules:

Width : 95cm
Length : 190cm
Height : 95cm
